SBL 半自動清洗油濾器
所屬分類：
關鍵詞：過濾器丨閥門遙控裝置丨船用模塊丨液壓
返回列表- 產品描述
-
概述 Overview
SBL型半自動清洗濾器主要用于燃油、滑油、柴油的過濾，濾去不溶于油的污物，以保證油液的清潔，其他場合可按條件使用。
其濾器為燭式濾芯，具有過濾效率高，原始?jí)簭?qiáng)小，清洗方便特點。工作壓力0.6~1.0Mpa，工作溫度≤150℃。
SBL type semi-automatic cleaning filter is mainly used for fuel oil，lube oil and diesel oil which can filter insoluble oil contamination to keep the oil clean.On other occasions it can be used according to conditions
Filter element type is candle type,the filtration is high and original pressure is small.It is easy and convenient to clean.The working pressure is 0.6-1.0Mpa,working temperature≤150℃1、特點 Features：
當濾器壓力降達到規定值時，只要手動來回轉動手柄若干次，即可不停機對濾器進行清洗。濾網材料為1Cr18Ni9Ti
When the filter pressure drop is up to the required value we can just rotate the handle manually for several times.Material of filter screen is 1Cr18Ni9Ti.2、工作特點及清洗方式 Working characteristics and cleaning methods
濾器正常工作時可以兩腔同時工作，也可以單腔工作。當手柄處于垂直位置時，兩腔同時工作；當手柄處于右（左）位且水平位置時，左（右）腔正常工作。
清洗方式
左腔清洗：將轉換手柄從垂直位置向左迅速轉動60度，瞬時沖洗1-2秒，來回轉動手柄若干次，再將轉換手柄轉回到垂直位置，則左腔清洗完畢。
右腔清洗：將轉換手柄從垂直位置向右迅速轉動60度，瞬時沖洗1-2秒，來回轉動手柄若干次，再將轉換手柄轉回到垂直位置，則右腔清洗完畢。
當濾芯需拆下清洗時，手柄從垂直位置向左轉動90度，則左腔停止工作，右腔正常工作，此時左腔可拆下進行清洗；手柄從垂直位置向右轉動90度，則右腔停止工作，左腔正常工作，此時右腔可拆下進行清洗。3、使用注意事項
當濾器用于過濾重油時，在每次使用完畢停機前，應通入輕柴油將濾器中的重油沖洗干凈，以免重油在溫度降低以后凝結在濾芯組件表面，影響下次使用。
Filter can work simultaneously with two chamber and also can work with single chamber.When the handle is at vertical position the two chambers work together.When the handle is at the right（left）position or horizontal position，the left（right）chamber works.
Cleaning methods
Left chamber cleaning：The handle at the vertical position can be quickly turned left of 60°and the left chamber can be transiently flushed for 1-2 seconds.Turn the handle back and forth for several times and then back to vertical position.The left chamber cleaning is complete.
Right chamber cleaning：The handle at the vertical position can be quickly turned left of 60°and the right chamber can be transiently flushed for 1-2 seconds.Turn the handle back and forth for several times and then back to vertical position.The right chamber cleaning is complete.
When the filter element needs cleaning，please kindly turn handle from the vertical position to the left 90°.The left chamber stops working and right chamber works normally.At that time the left chamber can be dismantled for cleaning.Rotate the handle from the vertical position to the right 90°.The right chamber stops working，the left chamber works normally and right chamber can be dismantled can be dismantled for cleaning.
Precautions for use
When the filter is used for heavy fuel oil，we should pour in the light diesel oil to keep the chamber clean every time before hauling.If not，heavy fuel oil will condense on the surface of filter element at lower temperature and affect next usage.2、型號說明 Model description

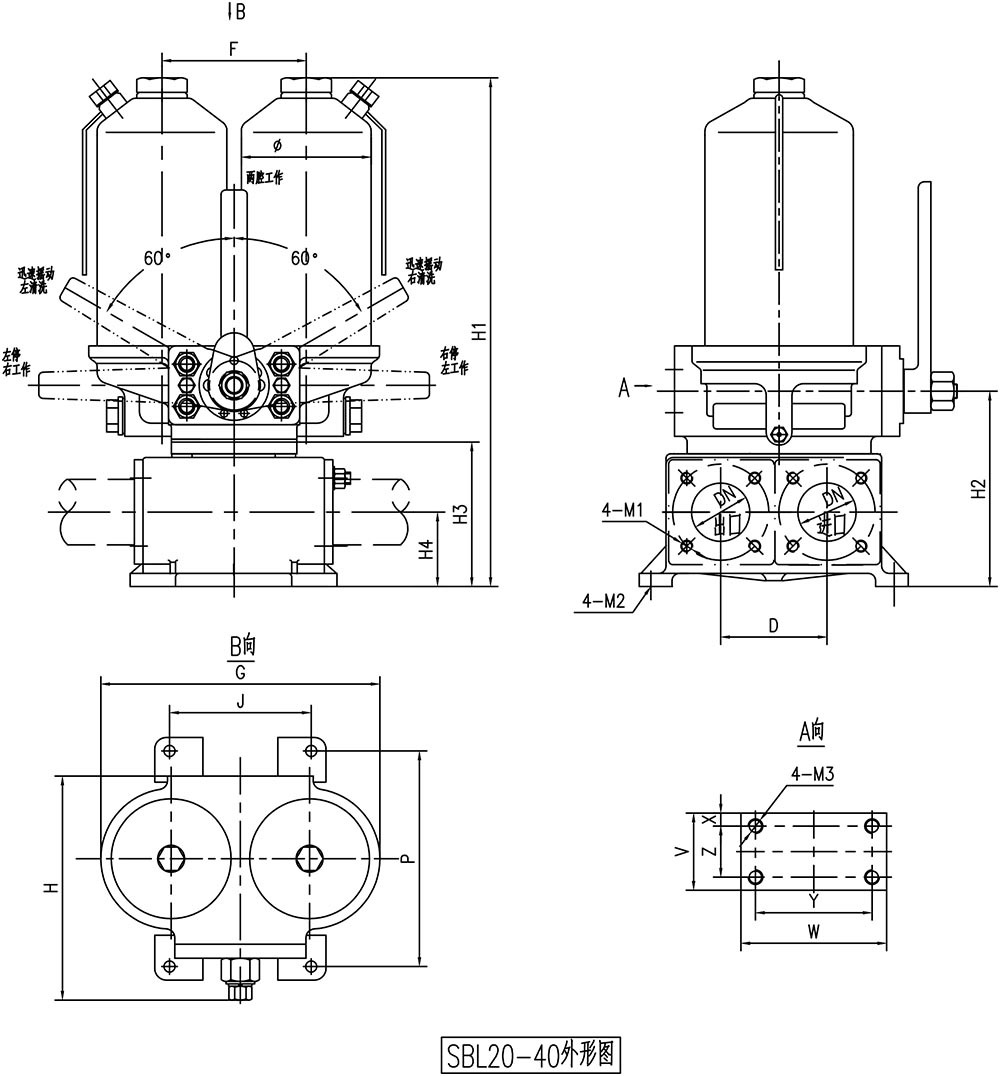

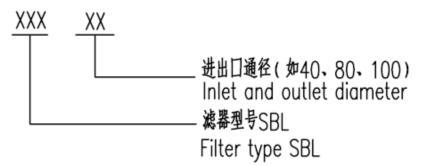

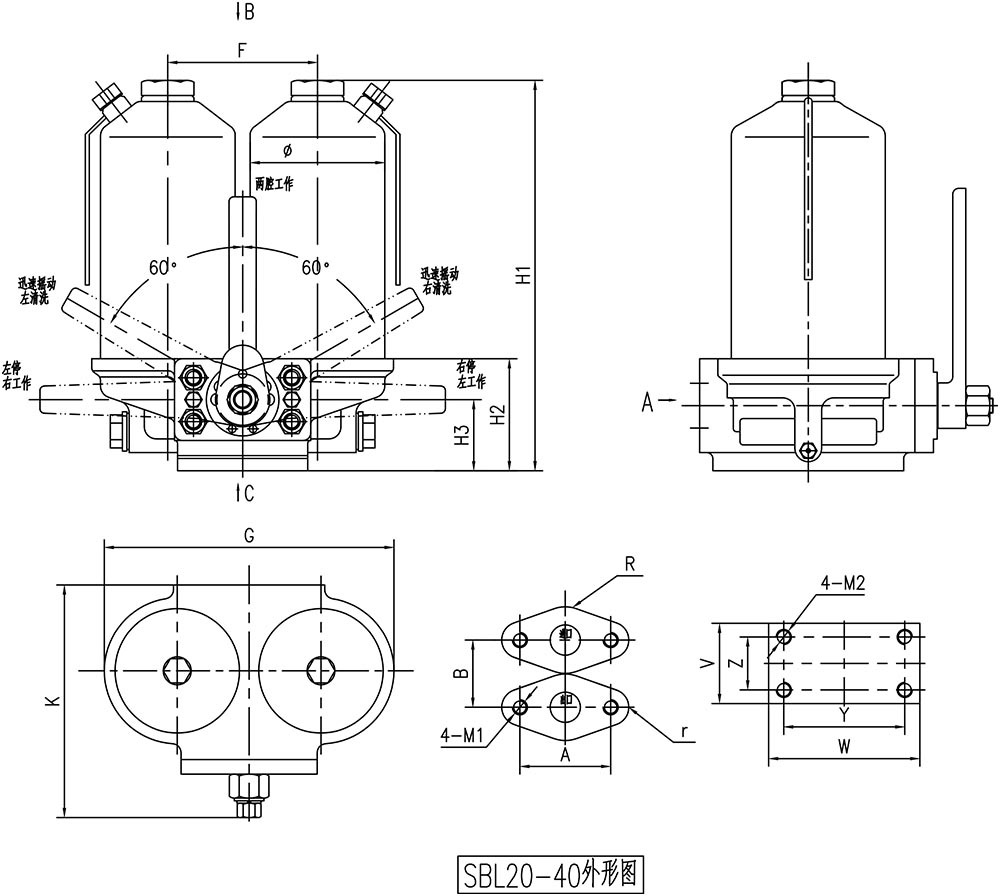

3、基本尺寸表 Basic Dimension Table
型號
Type流量（參考）
m³/h
Flow rate（reference）通徑及聯接尺寸
Diameter and connection dimension外形尺寸
Outline dimensionDN
A
B
R
r
4-M1
H1
H2
H3
F
∅
G
K
SBL20
1-2
20
62
55
28
11
M10
360
77
45
110
98
222
206
SBL25
2-4
25
SBL32A
4-7
32
75
70
35
15
M12
385
92
54
130
125
265
226
SBL40
7-10
40
480
94
52
安裝尺寸
Mounting dimension重量
WeightW
V
Y
Z
4-M2
100
70
75
35
M10
25
30
122
80
90
40
M12
47
50
注：濾器可以倒置安裝，通過A向4個螺栓與外界連接。
Ntoe：Filter can be installed inversely and connect four bolts and outside world via A.
注：
1、可不帶底座B，而用4個螺栓與外界連接，進出口在本體底部，前進后出。
2、底座上靠近手柄位置的兩孔都是進口，其余兩孔為出口。安裝時在左右兩側進出口可任意選擇，剩余進出口用盲孔法蘭封住即可。
1、It can work without base B and connect four bolts and outside world via A.Inlet and outlet is on the bottom of the body，front-in and back-out.
2、Two holes on the base near the handles are all inlets，other two holes are outlets.Inlets and outlets on both left and right side are optional when mounting.The left inlets and outlets can be blocked by blind flange.
DN50-80技術參數
型號
Type流量（參考）
m³/h
Flow rate（reference）通徑及聯接尺寸
Diameter and connection dimension外形尺寸
Outline dimensionDN
D
K
4-M1
H1
H2
H3
H4
F
∅
G
H
SBL50
10-25
50
120
110
M12
540
253
184
86
165
155
330
350
SBL65
25-30
65
750
SBL80
25-40
80
146
182
M14
740
320
224
102
200
190
424
400
安裝尺寸
Mounting dimension重量
WeightP
J
4-M2
W
V
Y
Z
X
4-M3
258
136
∅14
150
115
110
78
13
M12
67
16
71
334
244
∅16
200
145
160
100
26
M16
135

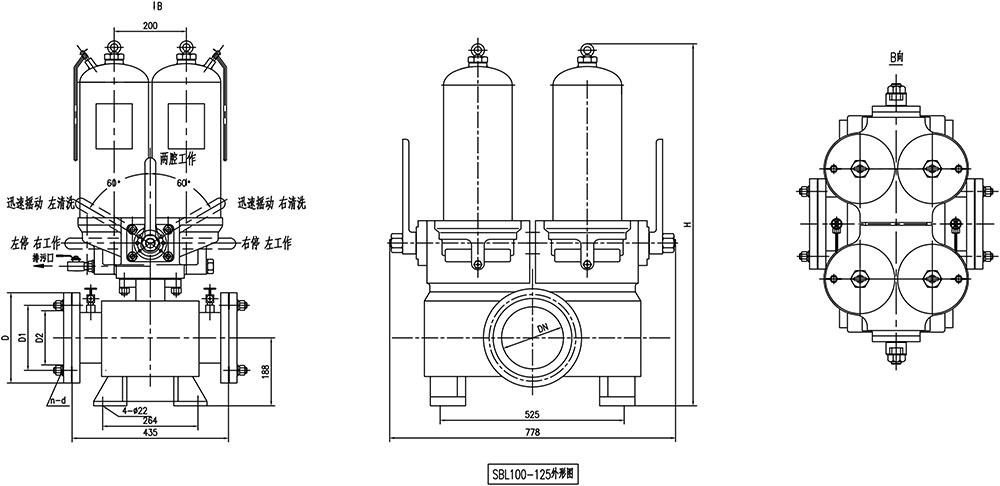

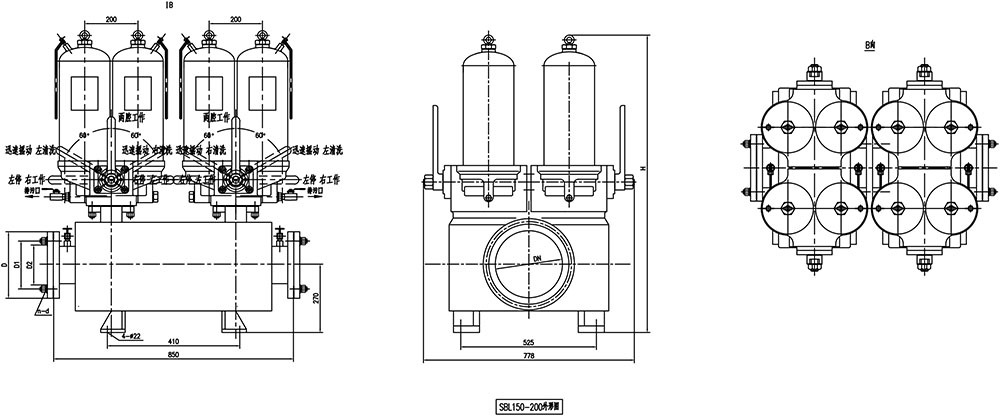

DN100-125技術參數
型號
Type流量（參考）
m³/h
Flow rate（reference）通徑及聯接、外形尺寸
Diameter and connection dimension、outline dimension重量
WeightDN
D
D1
D2
n-d
H
SBL100
60-100
100
250
180
158
8-M16
965
248
SBL125
125
210
184
8-M16
1066
254
型號
Type流量（參考）
m³/h
Flow rate（reference）通徑及聯接、外形尺寸
Diameter and connection dimension、outline dimension重量
WeightDN
D
D1
D2
n-d
H
SBL150
100-170
150
340
240
212
8-M20
1160
579
SBL200
200
295
268
8-M20
1260
610
