概述 Overview
DXL滑油精濾器，主要用于陸地及船用柴油機或及其試驗設備的精濾，濾去不溶于油的微小顆粒，保持油液的清潔一般能達到3-10μm，其他場合可按條件選用。

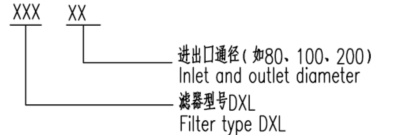

DXL lube oil fine filter is mainly used for land and marine diesel engine and test equipment.It removes the small insoluble particles to keep the oil clean.Generally it can be able to reach 3-10μm.On other occasion it can be chosen conditionally.型號說明Model description
1、殼體材料通常采用Q235A
Body material adopts Q235A
2、工作壓力：≤1.0Mpa
Working pressure：≤1.0Mpa
3、工作溫度：≤80℃
Working temperature：≤80℃
4、法蘭標準一般采用GB/T9119，也可以根據客戶選用的標準制造
Generally，flange standard adopts GB/T9119 and can also be produced according to customer’s requirement.
5、若超出樣本尺寸的濾器，我廠也可設計、承制供貨如DN400,DN500等。
We can also product the filter like DN400，DN500 and so on beyond the sample size.3、基本尺寸表 Basic Dimension Table

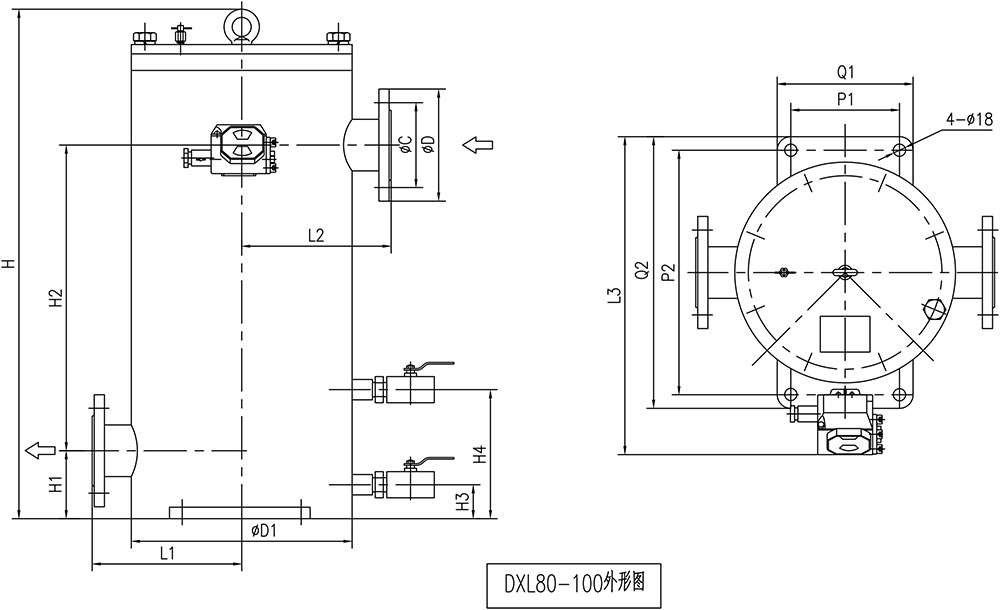

DXL濾器尺寸
DXL filter dimensionDN
L1
L2
Q1
Q2
H1
H2
H3
H4
H
P1
P2
D1
D
C
80
220
220
200
400
110
440
50
190
750
160
360
325
200
160
100
220
220
200
410
125
975
45
215
1336
160
370
325
220
180

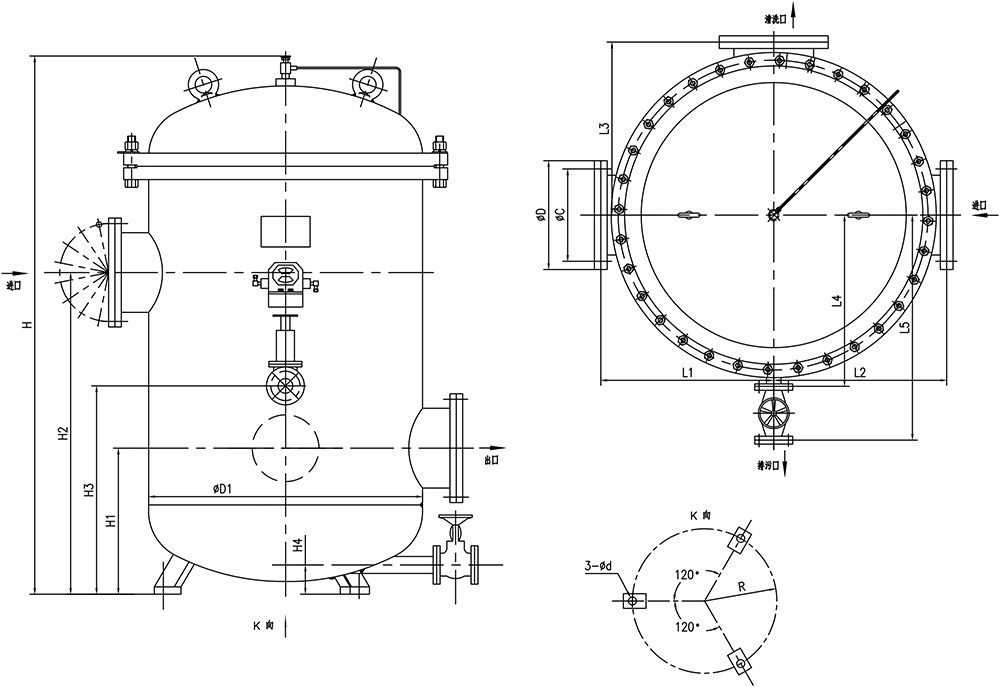

DNL1
L2
L3
H1
H2
H3
H4
H
D1
R
d
D
C
150
450
450
380
310
820
460
120
1730
620
322
24
285
240
200
530
530
530
360
900
555
100
1800
820
400
24
395
350
300
698
698
650
570
1090
820
100
2300
1120
500
40
445
400
350
748
748
748
570
1090
820
100
2300
1220
600
40
505
460
