DSL 吸入粗水濾器

吸入口粗水濾器符合CBM1061標準，廣泛用于船舶、電站、化工，污水處理廠的海水或淡水管路系統，安裝與泵前的吸入口，有時也作為泵后的初級過濾使用，工作壓力≤0.2Mpa.

所屬分類：

普通濾器

關鍵詞：過濾器丨閥門遙控裝置丨船用模塊丨液壓

返回列表

產品描述

商品名稱: DSL 吸入粗水濾器

概述 Overview

吸入口粗水濾器符合CBM1061標準，廣泛用于船舶、電站、化工，污水處理廠的海水或淡水管路系統，安裝與泵前的吸入口，有時也作為泵后的初級過濾使用，工作壓力≤0.2Mpa.
Absorbent crude water strainer is to comply with standard of CBM1061,which is widely used for vessel,power plant,chemical industry,water sewage treatment plant or fresh water piping systems.It is installed in the suction inlet in front of the pump and sometimes used as a primary filter.Working pressure≤0.2Mpa.
（1）粗水濾器的本體，蓋通常采用Q235A板材制成，根據用戶要求也可以采用SUS304制造，濾筒通常采用SUS304制造。
（2）濾筒通道面積與公稱通徑之比＞3
（3）濾器一般工作壓力為≤0.2Mpa。
（4）濾器內外表面通常采用熱鍍鋅，鍍層厚度≥20μm，也可將殼體外表面作焦油環氧處理，內表面選用鍍塑處理或附貼橡膠襯里。
（5）法蘭一般采用CBM1012標準，也可以根據用戶選用的標準制造。
（6）若需超出CBM1016-81標準規定范圍的粗水濾器，我廠也可以設計，承制供貨?？商刂乒ぷ鲏毫?le;0.4Mpa，或公稱通徑為600,700，800,900,1000,1250,1500,2000等規格。
（1）Body and cover of crude water filter are usually made of Q235A plate.We can also adopt SUS304 standard to produce it according to users’ requirements.Usually,filter chamber is to comply with the standard of SUS304.
(2) Filter chamber channel area/nominal diameter＞3.
（3）Filter normal working pressure is ≤0.2Mpa.
(4) Usually，external and internal surface of filter adopt hot galvanizing and coating thickness≥20μm.The external surface of filter can also adopt epoxy-tar coating；internal surface can adopt plastic plated treatment or rubber lining.
（5）Generally，flange adopts CBM1012 standard and can also be produced according to customers’ requirements.
（6）We can also produce and provide the crude water filter beyond the scope of CBM 1016-81 standard.Special working pressure≤0.4Mpa，or nominal parameter is 600,700,800,900，1000,1250,1500,2000，etc.

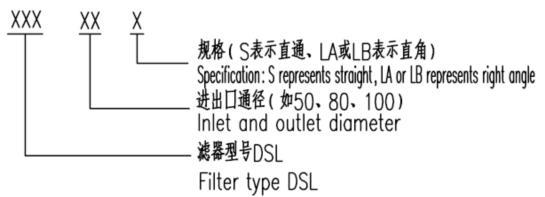

型號說明 Model description

基本尺寸表Basic Dimension Table

工作壓力 P Mpa	公稱通徑 DN	L	L1	H≈	H1


0.2	50	200	100	250	100
	65	250	125	298	135
	80	270	135	340	152
	100	320	160	398	185
	125	400	200	435	207
	150	460	230	530	258
	200	550	275	620	320
	250	680	340	740	412
	300	760	380	845	473
	350	820	410	955	529
	400	880	440	1050	595
	450	1050	525	1120	600
	500	1080	540	1200	610
