概述 Overview
CL系列磁性濾器，廣泛適用于船舶、電力、石化等行業，能在油液介質輸送過程中有效的清除磁性金屬雜質，降低油液中鐵離子含量，減少鐵雜質對機械磨損，延長被潤滑系統使用壽命，提高介質清潔度，具有去雜效率高、安裝操作方便并能很方便地清洗磁棒附著物、使用壽命長等特點。

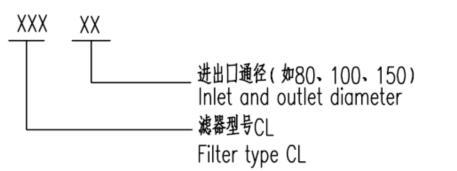

CL series magnetic filters are widely used for shipbuilding，electric power，petrochemical and other industries，which can remove magnetic metal impurities effectively from oil fluid medium in the course of transmission as well as reduce the iron ion content in the oil liquid，reduce the mechanical wear against iron impurities，extend the life of lubricating system and improve medium’s cleanliness.What’s more,it has high efficiency of decontamination,convenient installation and operation,easy cleanliness of magnet attachment and long working life.型號說明 Model description
技術參數：
1、工作壓力：≤1.0Mpa
Working pressure：≤1.0Mpa
2、工作溫度：≤100℃
Working temperature：≤100℃
3、殼體材料采用碳鋼Q235B
Body material adopts carbon steel Q235B
磁性元件采用永磁鐵
Magnetic element adopts carbon steel
4、法蘭標準：GB2506-89，PN10
Flange standard：GB2506-89，PN10

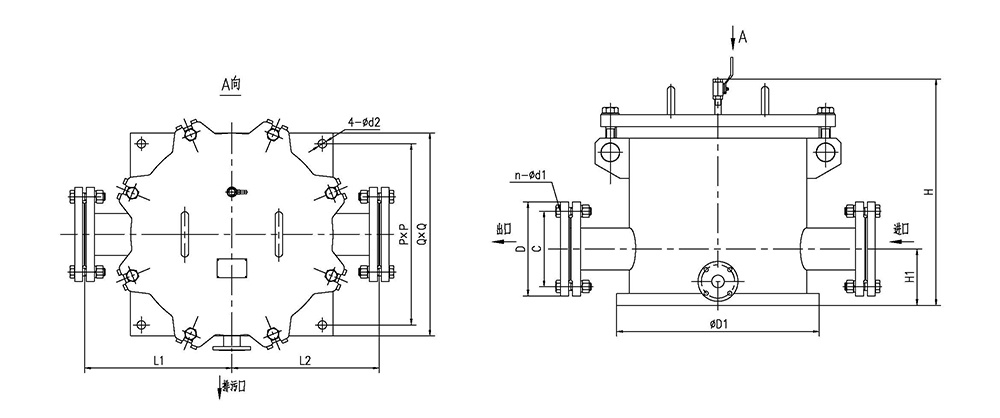

基本尺寸表 Basic Dimension Table
CL濾器尺寸
CL filter dimension通徑
DN（mm）濾器外形尺寸
Outline dimension法蘭安裝尺寸
Flange dimension底腳安裝尺寸
Mounting dimension of footingL1
L2
H
H1
QXQ
D1
D
C
n-d1
PXP
n-d2
65
280
280
~480
115
344X344
324
185
145
4-φ18
275X275
4-φ18
80
310
310
~480
120
431X431
377
200
160
8-φ18
385X385
4-φ18
100
375
375
~540
130
533X533
513
220
180
8-φ18
465X465
4-φ18
125
395
395
~660
140
565X565
552
250
210
8-φ18
500X500
4-φ20
150
415
415
~710
190
605X605
590
285
240
8-φ22
530X530
4-φ20
200
415
415
~710
190
605X605
590
340
295
8-φ22
530X530
4-φ20
250
440
440
~760
280
680X680
656
395
350
12-φ22
580X580
4-φ20
300
440
440
~760
280
680X680
656
445
400
12-φ22
580X580
4-φ20
350
505
505
~960
285
824X824
800
505
460
16-φ22
755X755
4-φ20
400
645
645
~1000
300
985X985
924
565
515
16-φ26
860X860
4-φ20
450
660
660
~1080
390
1078X1078
1018
615
565
20-φ26
995X995
4-φ20
500
705
705
~1180
415
1158X1158
1098
670
620
20-φ26
1075X1075
4-φ20
600
800
800
~1325
450
1260X1260
1220
780
725
20-φ30
1110X1110
4-φ20
