CRGD船用柴油機燃油供應系統組合單元
所屬分類：
- 產品描述
-
CRGD船用柴油機燃油供應系統組合單元
CRGD-type marine diesel engine fuel oil supply and booster module
概述 info
船用柴油機燃油供應系統組合單元是為柴油機配套的一種增壓供油系統,可為柴油機提供合適的流量、壓力、粘度的重燃油, 同時通過三通閥可以實現輕重油的轉換, 保證柴油機在運轉過程中的正常工作。船用柴油機燃油供應系統組合單元適用于所有采用重油為燃料的軍民船、電站等場所。
單元的設計、制造按《CB/T 4251船用柴油機燃油供應系統組合單元》執行。
Marine diesel fuel supply system combination unit is a diesel engine booster oil supply system equipped for the diesel engine to provide the heavy fuel oil of appropriate flow, pressure and viscosity, while the three-way valve can realize light and heavy oil conversion, to ensure the diesel engine at normal operation during operation. Marine diesel fuel supply system combination unit is suitable for all military and civilian vessels that use heavy oil as fuel, power stations and other places.

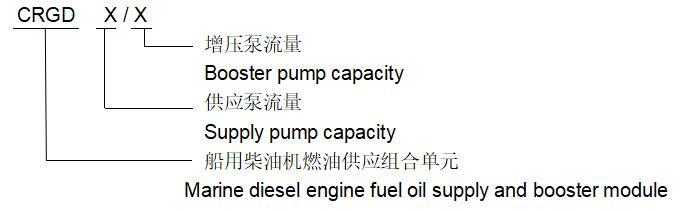

Unit design, manufacturing are carried out according to《CB / T 4251 marine diesel fuel supply system combination unit》.型號說明Type description
3.選型參數Parameter of type selection
型號 Type流量Capacity(m3/h)
外形尺寸 Outview dimension(general)
柴油機功率 Engine power(kw)
CRGD1.0/1.6
1.6
2600x1200x2100
1000~2500
CRGD1.9/2.5
2.5
2800x1200x2100
2500~5000
CRGD2.7/4.0
4.0
2800x1300x2100
5000~7000
CRGD3.7/5.4
5.4
3000x1300x2100
7000~9000
CRGD4.6/7.4
7.4
3400x1400x2100
9000~12000
CRGD5.7/9.2
9.2
3700x1400x2100
12000~15000
CRGD7.8/11
11
3700x1400x2100
15000~20000
CRGD11/15.8
15.8
4000x1700x2100
20000~30000
注:1.30000Kw以上柴油機根據具體要求設計;
2.根據不同柴油機機型,單元參數略有變動;
3.具體配置及尺寸根據客戶要求確定。
Note:1.The diesel oil engine of over 30000Kw will be designed according to the detailed requirement.
2.Moduel’s parameter will be adjusted according to the diesel oil engine of different type.
3.The detailed configuration and dimension should be confirmed by customers.
