JP液壓緊配螺栓
JP Hydraulic Fitting Bolt概述 Overview
液壓緊配螺栓又稱軸系液壓螺栓或中間擴張液壓拉伸螺栓，主要利用材料的彈性變形來實現間隙配合向過盈配合的轉變，從而實現軸系扭矩的傳遞，是一種用于法蘭聯軸節上的新型螺栓，由外表帶有一定錐度的拉緊螺栓，內孔帶有相應錐度的中間錐套及兩只緊定螺母組成。拉緊螺栓兩端有螺紋，中間錐套的外表是圓柱形的，且與螺栓孔有一定的間隙。它的最大優點是裝拆方便、重復使用以及省時省力，逐步代替?zhèn)鹘y(tǒng)的冷凍式螺栓。
Hydraulic bolt, also known as the axis of the hydraulic bolt or intermediate expansion of the hydraulic tension bolt, the main use of elastic deformation of the material to achieve clearance fit to the interference fit in order to achieve shaft torque transmission. It is a new t
ype bolt on the flange coupling, the appearance of the taper with a certain degree of taut bolts, the hole with a corresponding tapered middle taper sleeve and two tight nut composition. Tighten the bolt at both ends of the thread, the middle of the outer sleeve is cylindrical, and the bolt hole with a certain gap. Its biggest advantage is the easy assembly and disassembly, reuse and save time and effort, and gradually replace the traditional frozen bolt.
液壓螺栓可以用在船舶軸系的主機（或減速箱）輸出軸和中間軸、中間軸和中間軸以及中間軸和螺旋槳軸等用法蘭聯接的聯軸節中，也可以用在蒸汽輪機、軋鋼機或其它承受高扭矩的連接件中。產品可提供DNV·GL、ABS、LR、NK、KR、RINA、CCS等各船級社的船檢證書。
Hydraulic bolts can be used in flanged joints of the main shaft (or reduction gearbox) output shafts and countershafts, countershafts and countershafts as well as countershafts and propeller shafts, as well as in steam turbines, steel rolling machine or other high-torque connection. Products can be provided DNV · GL, ABS, LR, NK, KR, RINA, CCS and ship inspection certificate of other classification societies.參數選型表
公稱孔徑
d法蘭組最小厚度
H伸出長端長度L1
伸出短端長度
L2螺紋
M螺母外徑
D螺母厚度
L3>38~40
120
64
55
M30×3.5
58
25
>40~44
125
64
55
M33×3.5
60
27
>44~49
138
70
58
M36×4
64
29
>49~51
143
78
62
M39×4
68
31
>51~55
152
83
68
M42×4.5
74
34
>55~58
158
87
70
M45×4.5
78
36
>58~62
160
91
72
M48×5
82
39
>62~68
172
99
78
M52×5
90
42
>68~73
184
106
84
M56×5.5
98
45
>73~78
196
114
90
M60×5.5
102
48
>78~83
208
122
96
M64×6
112
52
>83~88
220
128
102
M68×6
118
55
>88~93
232
134
106
M72×6
126
58
>93~98
244
140
110
M76×6
130
61
>98~104
258
146
114
M80×6
138
64
>104~112
272
154
120
M85×6
148
68
>112~118
288
162
126
M90×6
155
72
>118~124
304
170
132
M95×6
164
76
>124~130
320
178
138
M100×6
172
80
>130~138
335
186
144
M105×6
182
84

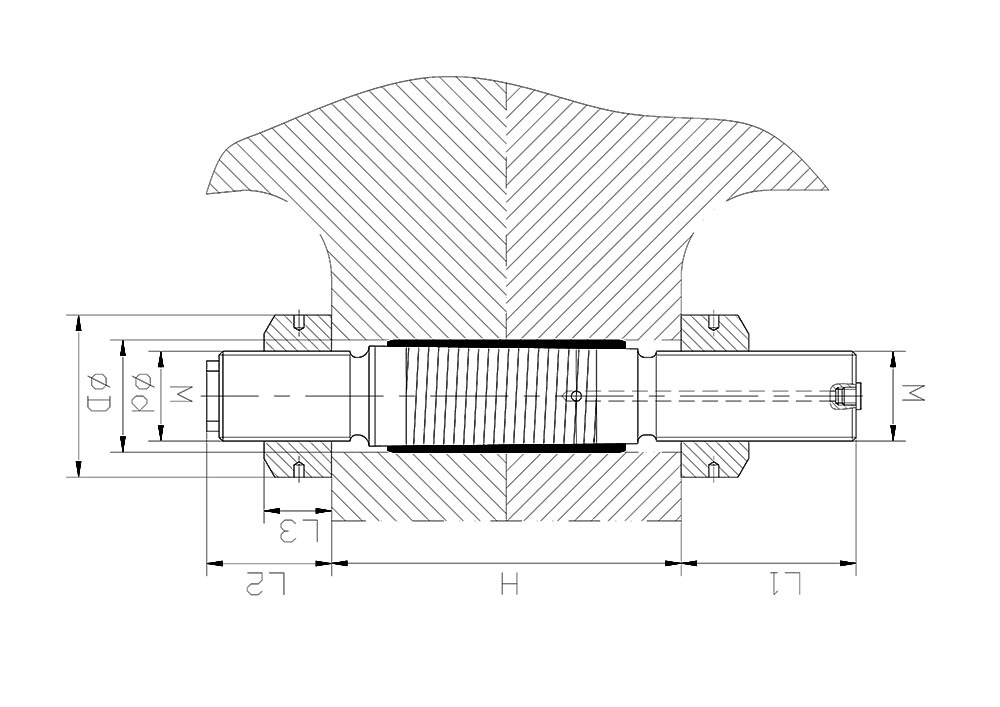

外形圖
