YL液壓聯軸節
所屬分類：
- 產品描述
-
YL液壓聯軸節
YL hydraulic coupling概述 Overview
液壓聯軸節主要利用材料的彈性變形來實現間隙配合向過盈配合的轉變，從而實現軸系扭矩的傳遞，是軸系新型連接的方式。液壓聯軸節借助于徑向和軸向油壓，使具有錐形接觸面的內外套產生相對位移，迫使內套收縮，并與兩連接軸產生過盈配合的可拆聯軸節。
The hydraulic coupling mainly uses the elastic deformation of the material to realize the change of the clearance fit to the interference fit, so as to realize the transmission of the shaft torque, which is a new type of connection of the shaft system. Hydraulic coupling adopts radial and axial hydraulic pressure, the relative displacement of the inner and the outer sleeve with the conical contact surface will force the inner sleeve to contract and make an interference fit with the two connecting shafts.
液壓聯軸節主要適用于兩軸系之間的連接。產品可提供DNV·GL、ABS、LR、NK、KR、RINA、CCS等各船級社的船檢證書。
Hydraulic coupling is mainly suitable for the connection between the two shaft system. Products can be provided DNV · GL, ABS, LR, NK, KR, RINA, CCS and ship inspection certificate of other classification societies .選型參數表
型號基本軸徑
d(mm)外套直徑
D(mm)外套長度
L1(mm)內套長度L2(mm)
初始尺寸
T(mm)最大扭矩M(kN.m)
重量
W(Kg)YL100
100
180
260
280
30
25
36
YL110
110
195
280
300
32
34
45
YL120
120
210
300
325
36
44
55
YL130
130
225
320
350
38
56
68
YL140
140
240
350
380
40
70
82
YL150
150
260
370
405
44
86
103
YL160
160
275
395
430
46
104
122
YL170
170
290
415
450
48
125
141
YL180
180
310
445
480
53
148
175
YL190
190
325
475
515
55
174
203
YL200
200
340
500
540
57
203
233
YL220
220
380
540
585
61
270
326
YL250
250
430
610
660
72
396
460
YL280
280
480
680
730
79
557
630
YL300
300
510
730
79
88
685
760
YL320
320
545
770
835
92
833
920
YL350
350
590
840
910
98
1089
1170
YL360
360
605
860
930
100
1177
1250
YL380
380
640
905
980
105
1393
1475
YL400
400
670
950
1025
109
1618
1690
YL450
450
755
1060
1150
124
2314
2400
YL470
470
785
1110
1195
128
2638
2700
YL500
500
835
1175
1265
131
3168
3240
YL530
530
885
1250
1345
142
3776
3790
YL560
560
935
1315
1415
147
4462
4550
YL600
600
995
1410
1515
160
5452
5470

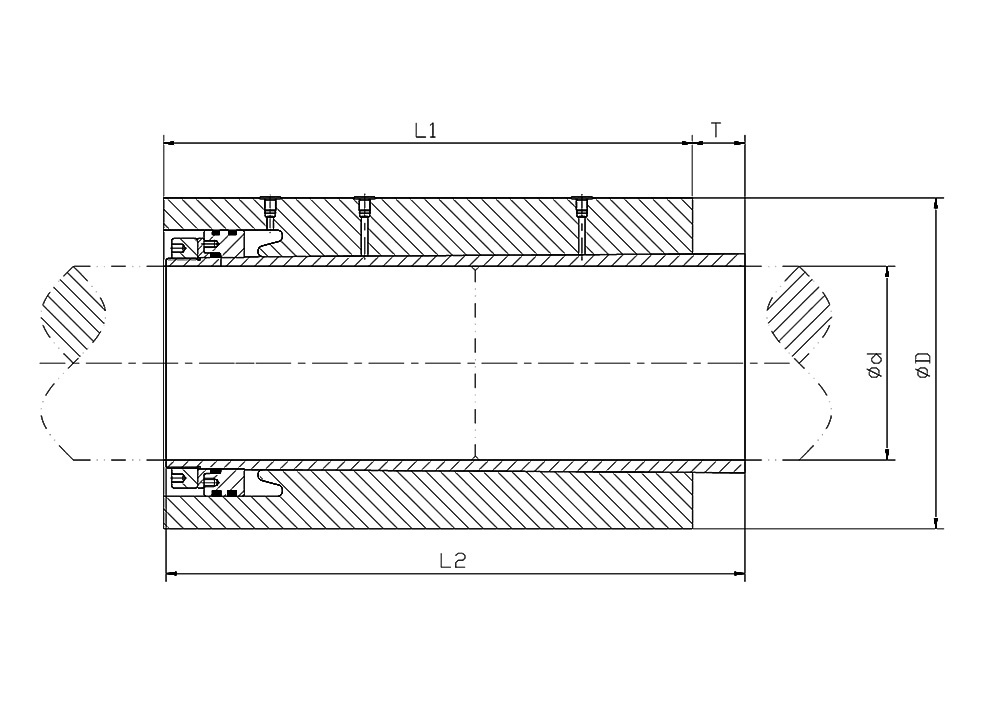

外形圖
