概述Overview
南通航海機械集團有限公司擁有下列型號濾芯元件，分別為網片式濾芯、燭式濾芯、折疊式濾芯、紙質濾芯、纖維濾芯、管道濾芯與磁棒濾芯。
Nantong Navigation Machinery Group Co.,Ltd has several kinds of filter elements.They are pan flter elements,candle flter elements,folded filter elements,paper filter elements,fabric filter elements,pipeline fIlter elements and magnet fIter elements.

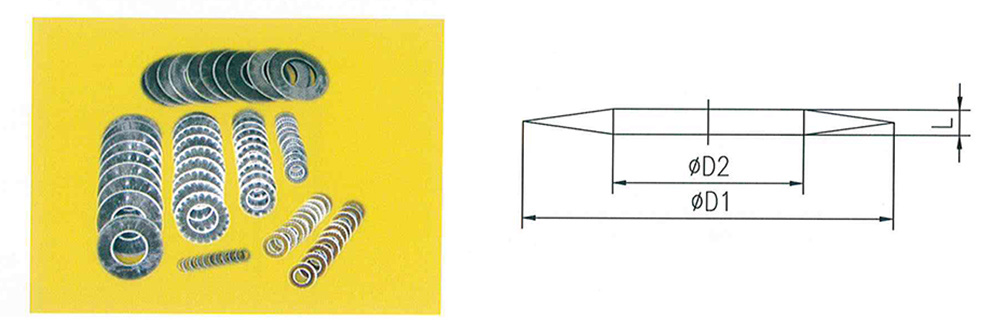

網片式濾芯材料為不銹鋼，濾芯具有過濾面積大，結構緊湊等特點。過濾精度一般為: 5~200μm
Material of screen pan filter elements is stainless steel.This kind fIter element has large flter area and compact structure.Filter fneness is generally: 5~200um.
基本尺寸表Basic Dimension Table

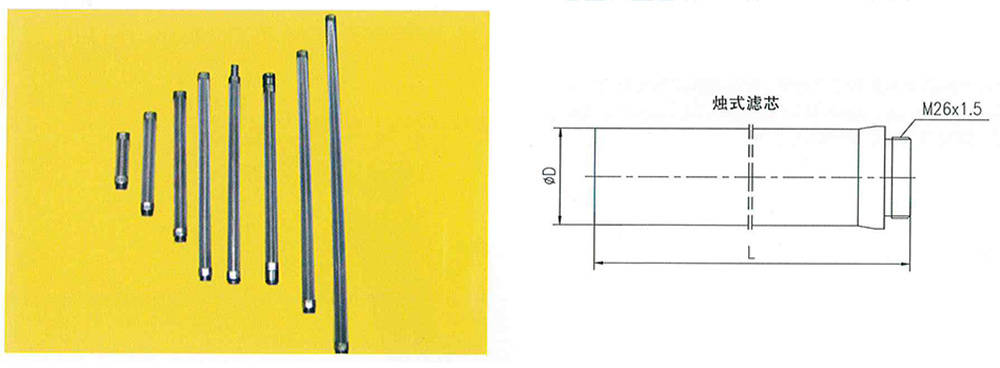

序號No. D1 D2 L 1 40 20 5 2 65 30 6 3 90 45 7 4 125 60 8 5 155 70 10 6 175 90 10 燭式濾芯濾網為不銹鋼，具有過濾效率高，清洗方便等特點。過濾精度-般為10~30μm，也可特制其他精度的燭式濾芯。
Material of screen of fIlter candle is made of stainless steel,having high fIlter efficiency and easy to clean.Filter fineness is generally: 10~30μm.We can also specially produce filter candle of other fineness.
基本尺寸表Basic Dimension Table

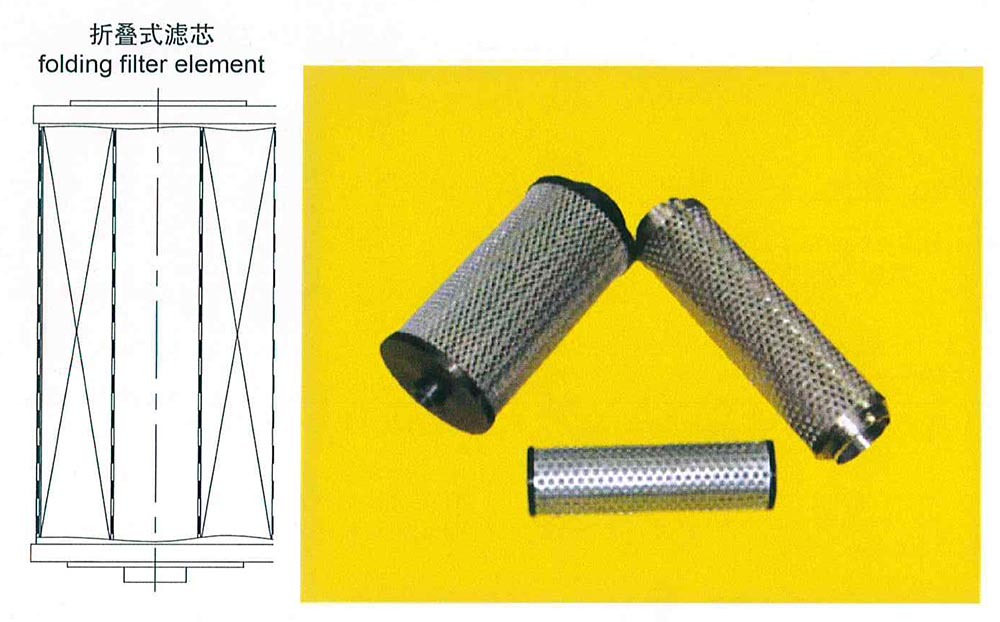

序號No. D L 1 30 218 2 30 318 3 30 438 4 30 560 5 30 668 6 30 738 折疊濾芯濾網是由不銹鋼絲紡織而成，濾芯具有過濾面積大，流量大，納污能力強等特點。過濾精度可達: 10~200um。公司具有多年的生產經驗，可根據樣品和圖紙生產。
Material of screen of folded filter elements is stainless steel.This kind fiIter element has large fIter area,large flow rate and pollutant holding quantity.Filter fneness is generally: 10~200um.Our company has production experience of many years and is able to produce according to samples and drawings.

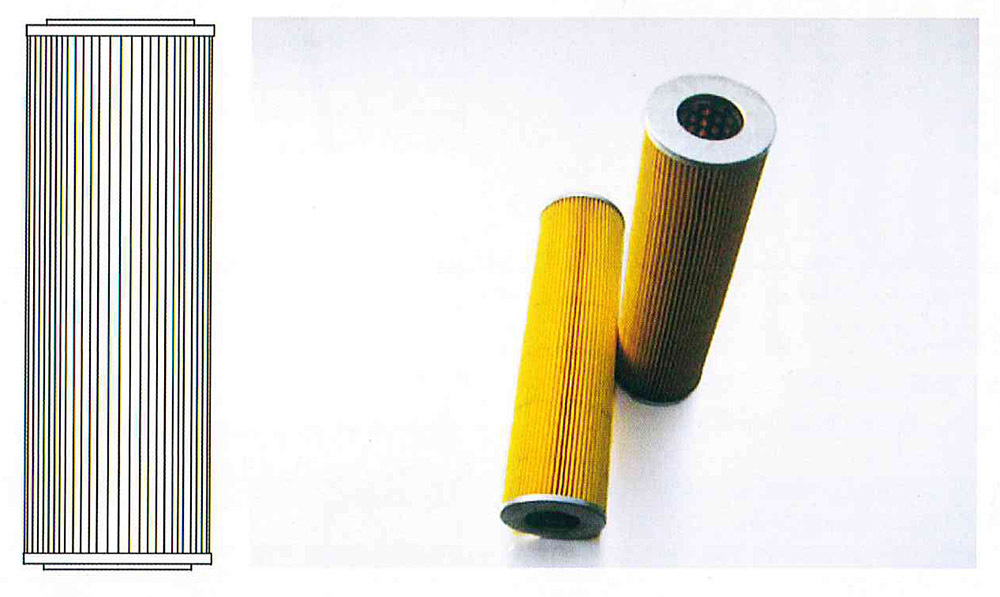

紙質濾芯過濾精度可達: 30~40μm;纖維濾芯過濾精度可達: 0.5~200μm。 公司具有多年的生產經驗,可根據樣品和圖紙生產。
Paper filter element's fineness can reach 30~40um.Fabric element's fineness can reach 0.5~200um.Our company has production experience of many years and is able to produce according to sample and drawings。

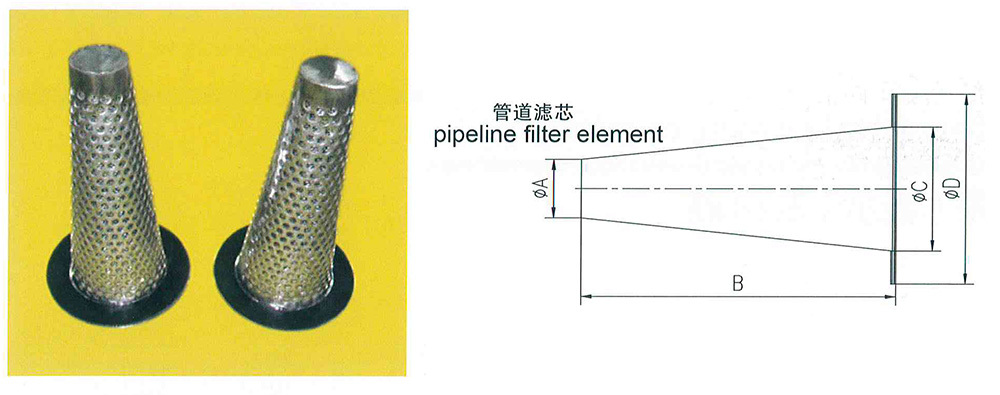

管道濾芯材料為不銹鋼，具有結構簡單，使用方便等特點。過濾精度可達:200~ 2000um.
Material of pipeline filter element is stainless steel, having features of simple structure and easy to use.Filter fineness can reach 200~ 2000μm.
基本尺寸表Basic Dimension Table
20 25 32 40 50 65 80 100 125 150 175 200 250 300 350 A 5 5 5 23 33 33 33 51 58 75 75 125 157 175 240 B 43 53 73 100 120 160 203 254 310 356 382 400 450 500 550 C 19 24 30 38 48 63 78 98 123 145 170 195 245 295 345 D 58 68 78 88 102 122 138 158 188 212 242 258 343 378 430 磁棒是由永磁體和不銹鋼組成，不銹鋼材料為316L。此磁棒具有使用磁性強，使用周期長，擦除鐵屑方便等特點。

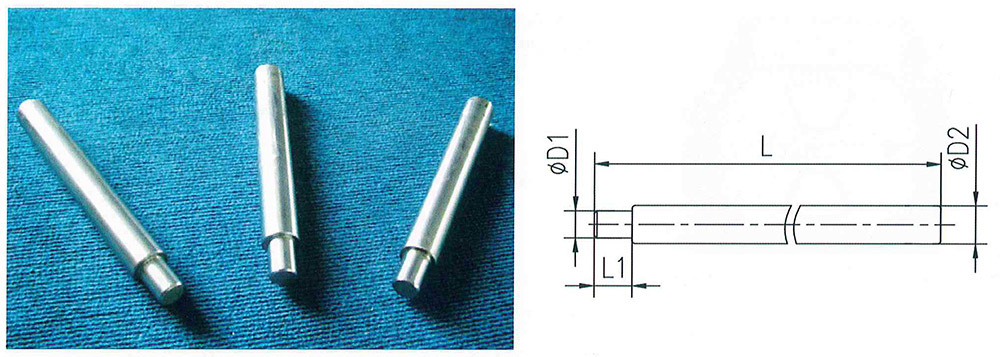

Magnet is made of permanent magnet and stainless steel.Material of stainless steel is 316L.This kind magnet has strong magnetism and long working period and easy to erase iron flings.
基本尺寸表Basic Dimension Table
序號No. D1 D2 L1 L 1 20 28 28 225 2 20 28 28 285 3 20 28 28 350 4 20 28 28 440 常用金屬絲網參數表Parameter table of commonly used wire mesh
過濾精度(參考)μm
Filter
fineness(reference公稱網目數(參考)目/時
Nomina mesh count網孔基本尺寸mm
Basic dimension of
mesh金屬絲直徑mm
Wire diameter單位面積網重(kg/m2)
Mesh weight of net weight per uni篩分面積百分率%
Percentage sieving area相當英制目數目/時
Quite inch mesh黃銅
Brass錫青銅
Tin bronze不銹鋼
Stainless steel2000 10 2.00 0.400 0.933 0.949 0.841 69 10.58 1000 20 1.00 0.250 0.70 0.712 0.631 64 20.32 450 40 0.450 0.180 0.720 0.732 0.649 51 40.32 280 60 0.280 0.140 0.653 0.655 0.589 44 60.48 200 80 0.200 0.112 0.562 0.572 0.507 41 81.41 114 118 0.125 0.090 0.527 0.536 0.475 34 118.14 78 158 0.090 0.071 0.438 0.446 0.395 31 157.76 45 200 0.071 0.056 0.346 0.352 0.312 31 200 38 264 0.056 0.040 0.237 0.210 34 264.6 34 300 0.050 0.032 0.178 0.158 37 309.8 常用金屬絲編織密紋網參數表Parameter Table of Commonly Used Wire Weaving Dense Wire Mesh
過濾精度μm
Filter
fineness網號
Mesh基本孔徑
Pore Diameter金屬絲直徑( 經X 緯 ) mm
Wire diameter(longitude X atitude)單位面積網重(kg/m2）
Mesh weight of net weight per unit有效截面積 %
Effective sectional area相當英制目數(經X緯 ) 目 / 時 )
Quite inch mesh (longitude X latitude)波爾BPLL網號
Boll mesh No.30 MPW240 45 0.14X0.10 0.99 12.8 57.7X279 25 MPW260 36 0.125X0.09 0.90 10.8 67.7X310 20 MPW280 32 0.112X0.08 0.79 12.7 70.2X349 17 MXW320 30 0.10X0.071 1.22 12.2 81.2X787 15 MXW360 25 0.10X0.071 1.24 9.6 90.7X787 13 MXW400 22 0.10X0.063 1.15 9.6 102X887 10 MXW630 15 0.063X0.036 0.67 12.4 160X1552 6 MXW795 10 0.05X0.032 0.58 9.2 203X1746 10 K 250/40 20 C 294/31 30 B 208/26 注: (1) MPW位平紋編織密紋網，MXW 為斜紋編織紋網。MPW is plain weave dense wire mesh, MXW is twill weave mesh.
(2) K,C,B 三種濾網主要用于燭式濾芯。K,C,B meshes mainly used for filter candle.
(3)密紋網單位面積網重按不銹鋼網計算。Net weight per unit area of dense wire mesh are counted by stainless steel wire.
(4)過濾精度僅供參考。Filter finesse is for reference only.
